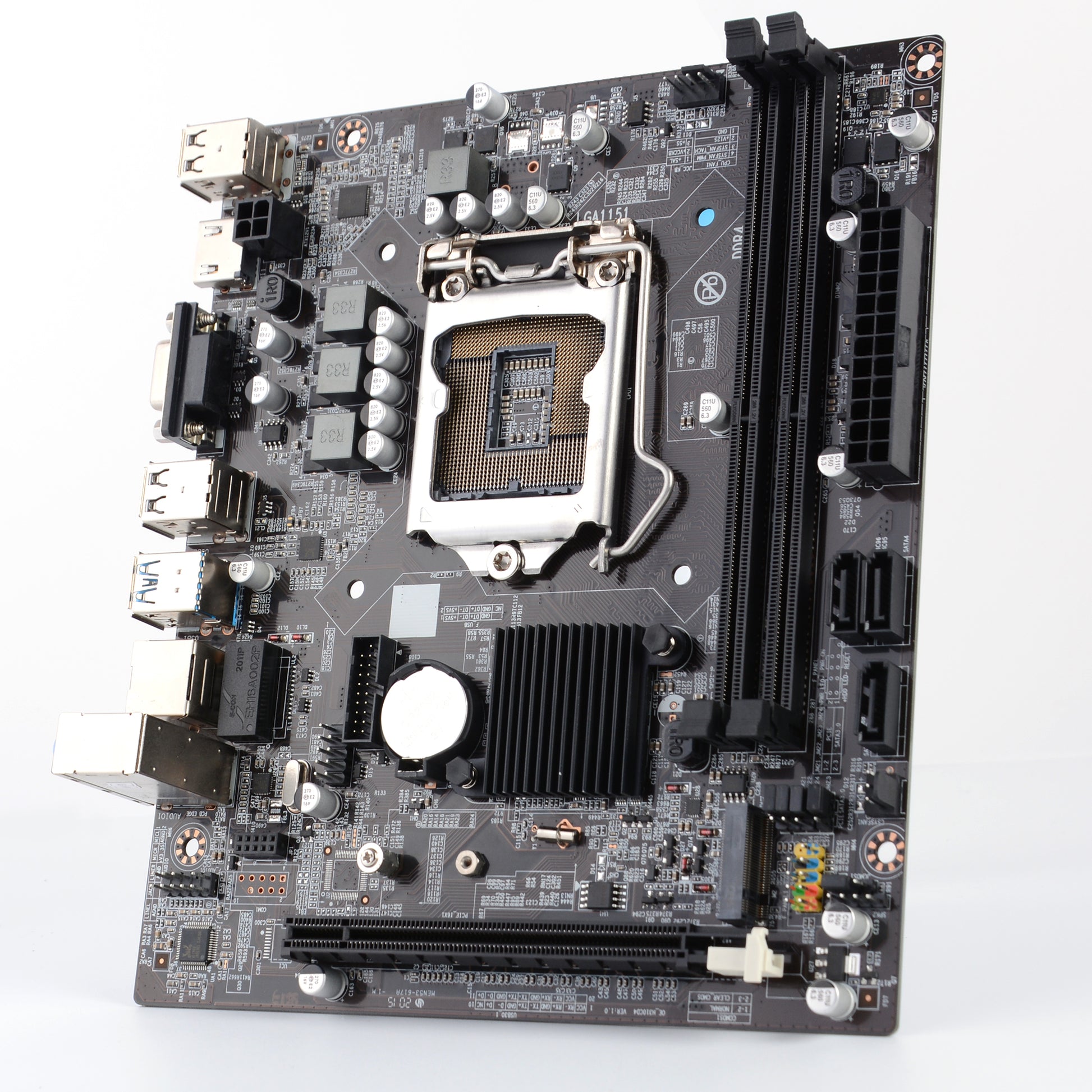

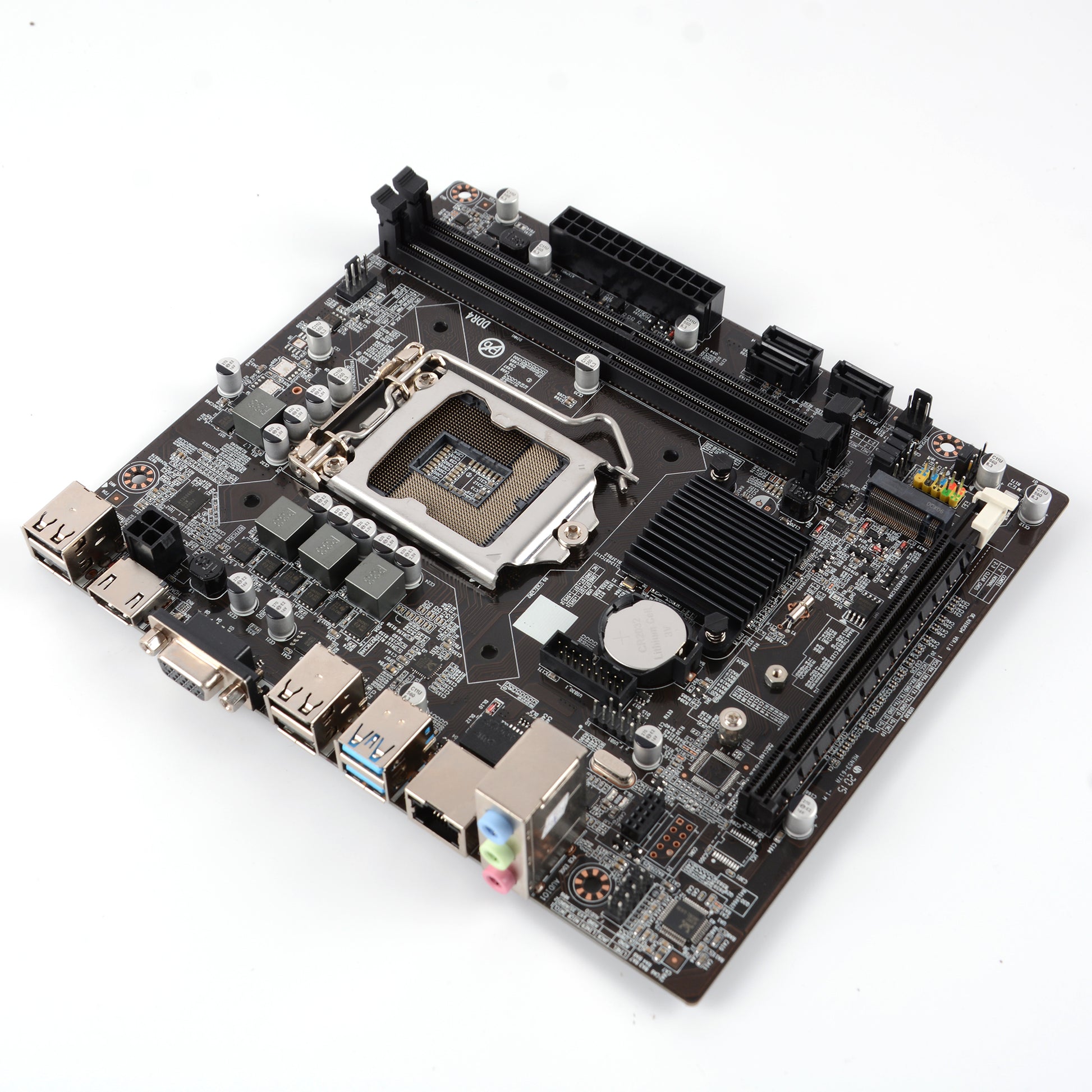

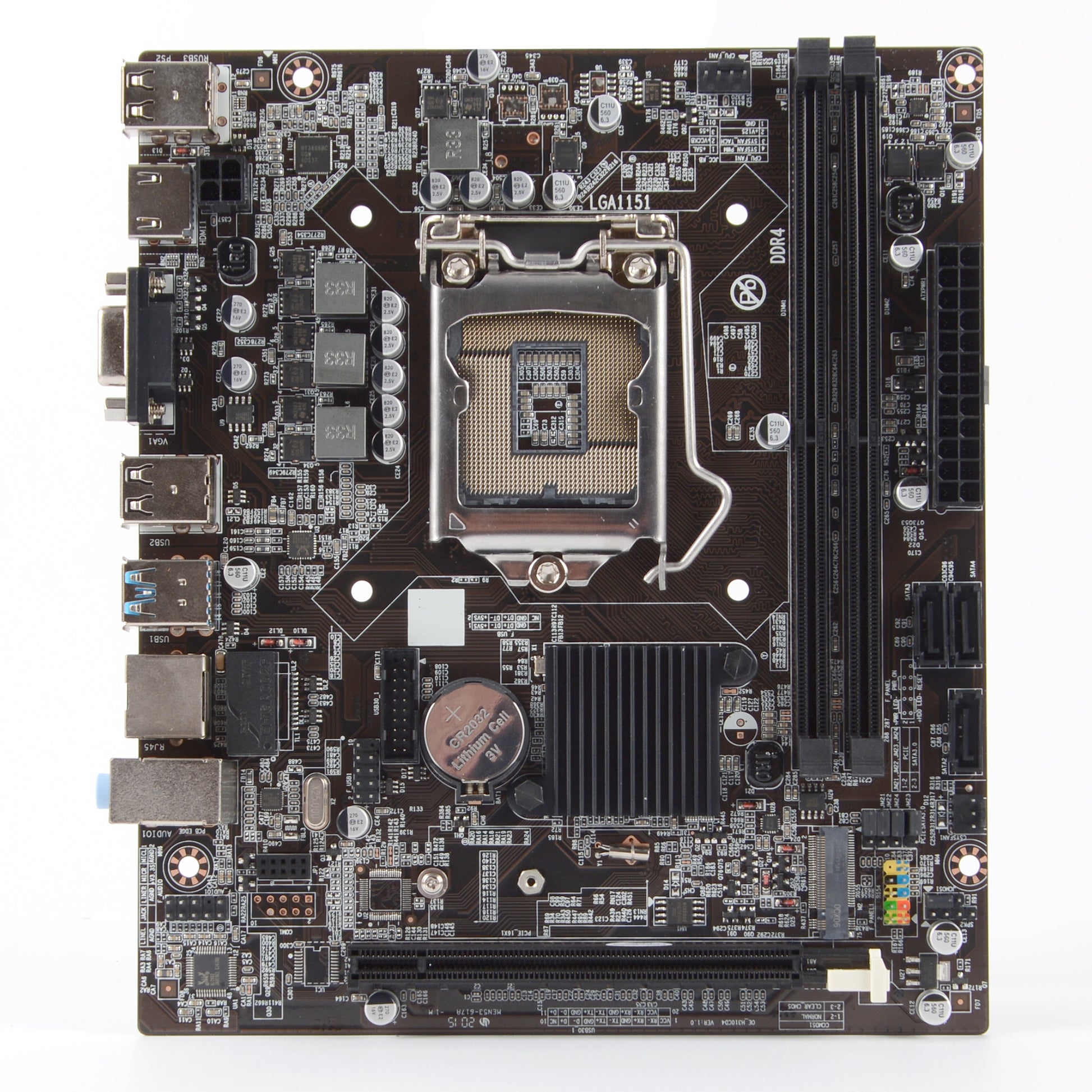

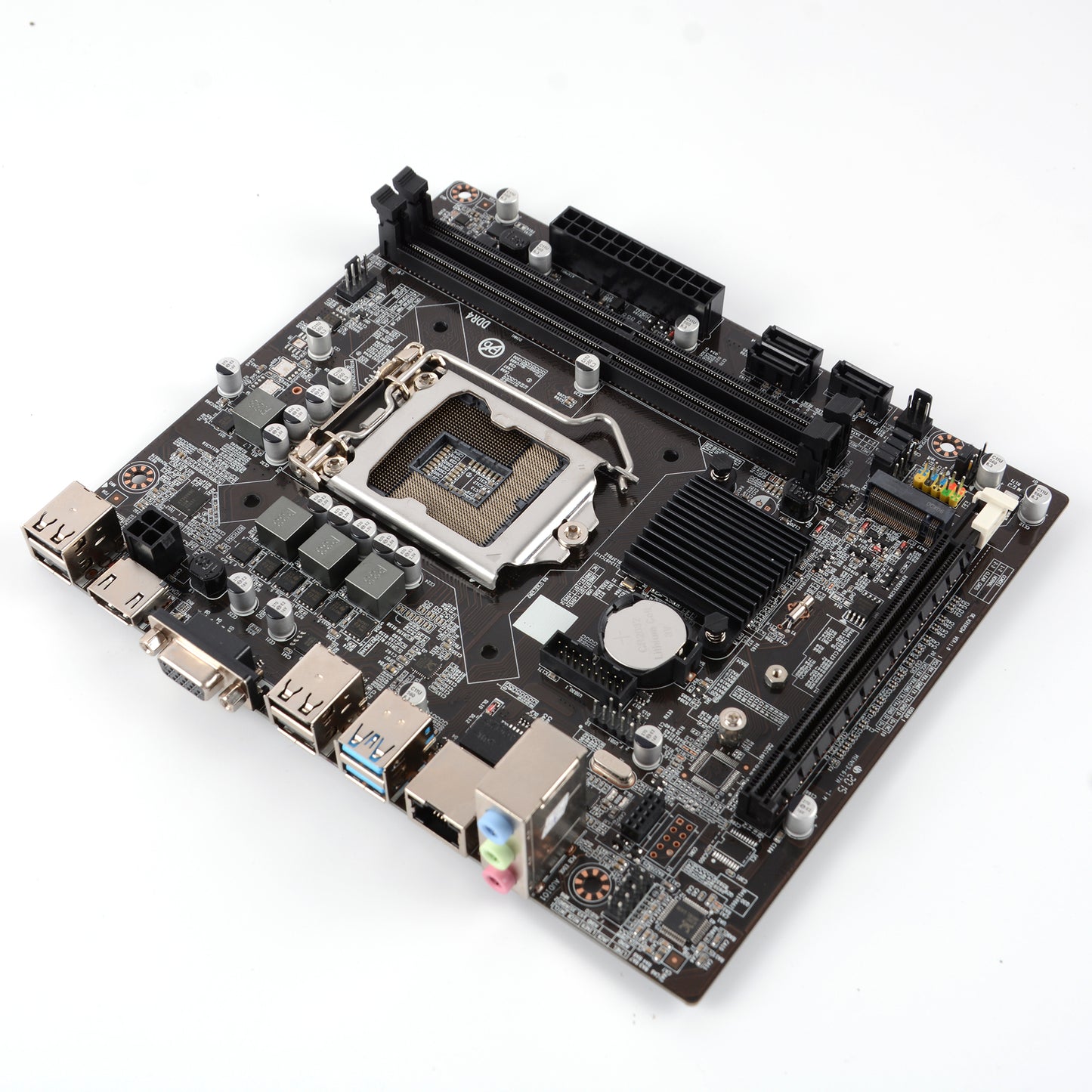

mingsu MS H310M C DDR4 LGA1151 on the mainboard supports m.2 SSD i3/i5 9100F/9400F CPU LGA 1151 H310 M เมนบอร์ดคอมพิวเตอร์ I5 9500F I59600K I7 8700 I7 9700 I9 9900

การสนับสนุนG4900 G4920 G5400 G5420 G5500 G5600 I3 8100 I3 8350 I3 9100F I5 8400 I5 8500 I5 8600 I5 9400F I5 9500F I59600K I7 8700 I7 9700 I9 9900ฯลฯ เมนบอร์ดคอมพิวเตอร์ CPU

Motherboard chip

Integrated chip sound card/NIC

The main chipset is Intel H310

Chipset Description Intel H310 chipset is used

Display chip Built-in CPU display chip (requires CPU support)

Audio chip integrated with Realtek ALC887 8-channel sound chip

Nic Chip onboard Realtek RTL8111H Gigabit NIC

Processor specification

CPU type ninth generation Core i7/i5/i3/Pentium/Celeron

CPU slot LGA 1151

CPU Description Intel 14nm processors are supported

Intel Turbo Boost 2.0 technology is supported

Memory specification

DIMM Type 2 x DDR4 DIMMs

Maximum memory capacity 32GB

Memory Description Supports dual-channel DDR4 2666mhz, 2400mhz, and 2133MHz memory

Storage extension

PCI-E Standard PCI-E 3.0

One PCI-E X16 slot

PCI-E Two slots for X1

Storage ports 4 x SATA III ports

I/O interface

USB port 4 x USB3.1 Gen1 port (2 built-in +2 backplane), 6 x USB2.0 port (4 built-in +2 backplane)

Video port 1 x VGA port, 1 x DVI port

One 4-pin power port and one 24-pin power port

Other ports 1 x RJ45 network port, 3 x audio port, 1 x PS/2 key&mouse universal port, 1 x front panel audio port (AAFP), 1 x clear CMOS jumper, 1 x system panel port, 1 x speaker port

Plate type

Main board type Micro ATX board type

The overall dimension is 22.6×18.5cm

Software management

BIOS performance 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 Favorites, history, F12 screenshots, and ASUS DRAM SPD (Serial Presence Detect) memory information

Other parameters

Motherboard accessories

Packing List Motherboard x1

User manual x1

Driver disc x1

I/O backplane x1

SATA 6.0Gb/s cable x2
